WHEN ORDERING PARTS: Please specify
Model No. of Cylinder, bore size, stroke, part number,
description and the quality required.
                                                                                                              BORE SIZES

		1 1/2"	2"	2 1/2"

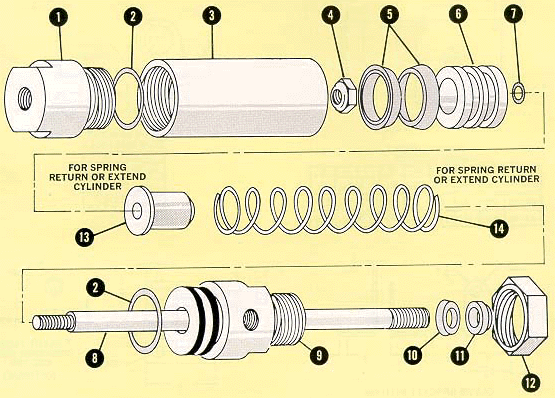

ITEM NO.	DESCRIPTION	PART NUMBER	PART NUMBER	PART NUMBER
1	Standard Cap End	A 15601	A 20601	A 25601
2	Tube Seal (2 required)	A 15500	A20500	A25500
3	Tube (Specify stroke)	A 15400	A20400	A 25400
4	Nut (Flex. Loc.)	A 15102	A20102	A25102
5	Piston Seal (2 required)	A 15200	A20200	A25200
6	Piston	A 15100	A 20100	A 25100
7	Static Piston Seal	A 15103	A 20103	A 25103
8	Rod - Grd. & Pol. Hd. Chrome Plated Specify Stroke and Thread	Specify Thread & Stroke or Model No. of Cylinder
9	Standard Head (with bearing)	A 15600	A 20600	A 25600
10	Rod Seal	A 15300	A 20300	A 25300
11	Rod Wiper	A 15301	A 20301	A 25301
12	Mounting Nut	A 15901	A 20901	A 25901
13	Spring Stop (Specify stroke, Spring Return or Spring Extend.)	A 15800	A 20800	A 25800
14	Spring Stop (Specify stroke, Spring Return or Spring Extend.)	A 15700	A 20700	A 25700
15	Clevis End (With bearing)	A 15604	A 20604	A 25604
16	Double Th'd End, Side Port	A 15602	A 20602	A 25602
17	Double Th'd End, End Port	A 15603	A 20603	A 25603
18	Cap End, Side Port	A 15605	A 20605	A 25605

NOTE: COMPLETE SEAL KIT AVAILABLE WITH ALL ESSENTIAL SEALS SPECIFY MODEL NUMBER OF CYLINDER
