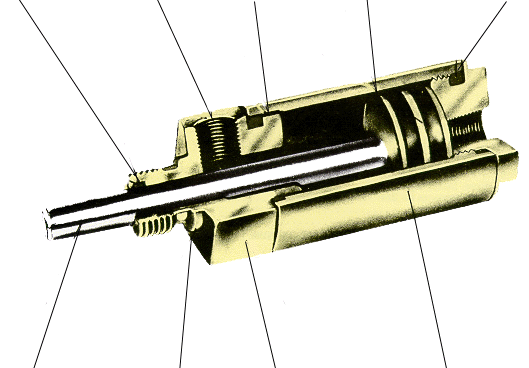

| Energized seal gives improved wear resistance and dynamic sealing characteristics. |
Large ports for fast action | Crimped Construction | Precision machined piston with two "U" cup type seals. Piston silver brazed to stainless Steel Piston Rod. |
Static O'Ring Tube Seals assure bubble tight construction. |
| Ground and polished stainless steel rod. |
Pilot diameter assures concentricity to mounting brackets or your equipment. | Solid high strength ends with Hex or Flats for ease of assembly. |
Heavy wall tube provides maximum safety factor. Bore has low-micro finish for minimum "U" cup wear. |
Seven (7) Standard Mounting Styles
available covering most applications.
Design and construction features
3/4" - 1" - 11/8" CYLINDERS
QUICK REFERENCE AIR AND HYDRAULIC FORCE CHART
| BORE | AREA | FORCE AT LISTED PRESSURE | VOL. PER IN. OF STROKE | ||||||
| 50 | 100 | 150 | 250 | 500 | GAL. | CU. FT. | |||
| 3/4" | PUSH | .442 | 22 | 44 | 66 | 110 | 221 | .0019 | .00025 |
| PULL | .393 | 19 | 39 | 58 | 98 | 196 | .0017 | .00022 | |
| 1" | PUSH | .785 | 39 | 78 | 117 | 196 | 392 | .0034 | .00045 |
| PULL | .708 | 35 | 70 | 106 | 177 | 354 | .0031 | .00041 | |
| 1 1/8" | PUSH | .994 | 49 | 99 | 149 | 248 | 497 | .0043 | .00057 |
| PULL | .917 | 45 | 91 | 137 | 229 | 458 | .0041 | .00054 | |
FORMULAS
PUSH: FORCE=PRESSURE X BORE AREA
PULL: FORCE=PRESSURE X (BORE AREA minus ROD AREA)
(Area=3.14 X Radius Squared)
