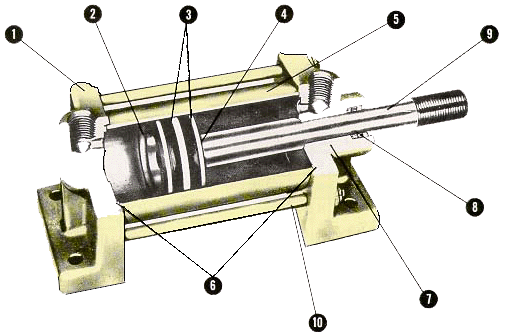

SEMI-STELL HEADS AND CAPS |  |
TUBE SEALS |
| High strength castings assure unexcelled performance and ease of mounting. |
|||
 |
PISTON |  |
ROD BEARING |
| Accurately machined to guarantee quick response and maximum seal life. |
|||
 |
"U" CUP SEALS |  |
SPECIAL ROD SEAL & WIPER |
| Provide zero leakage with minimum break away. | "U" cup seal with high performance rod wiper. | ||
 |
STATIC PISTON SEAL |  |
PISTON ROD |
| Static O-ring piston seal provides zero leakage thru piston. |
With 85,000 psi minimum yield, steel, ground and polished to a fine finish and close tolerance, and hard chrome plated. |
||
 |
CYLINDER TUBE |  |
TIE RODS |
| Made of 6063-T832 cylinder quality, hard coated Aluminum Tubing (Rockwell 60 on the "C" scale). It has an exceptionally hard wearing surface and provides ample factor of safety. |
Of high tensile steel, pre-loaded for leak-proof, trouble free service. Tie rods are secured by air-craft type self locking nuts. |
